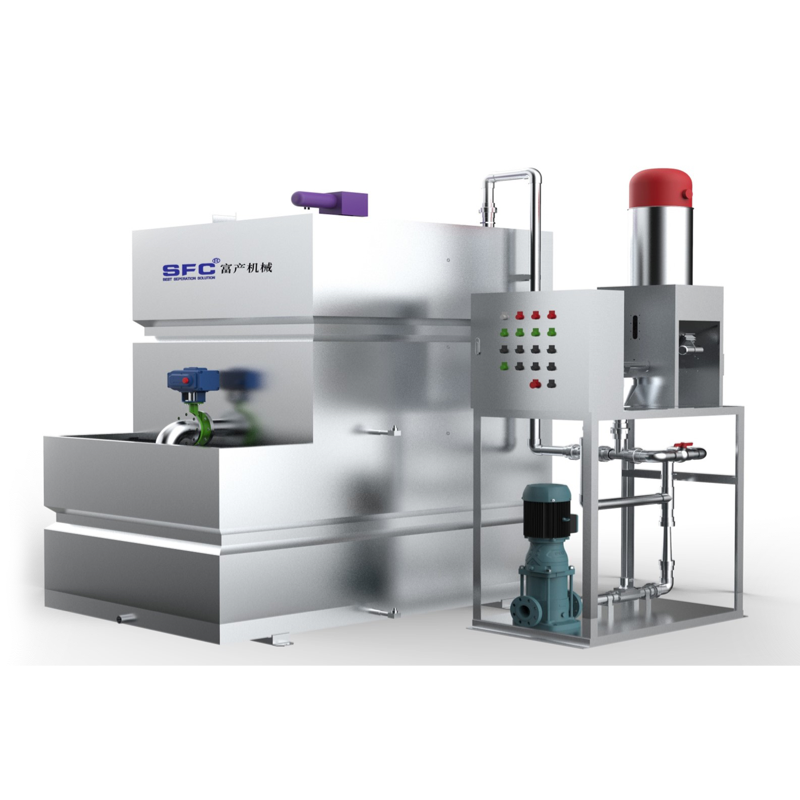

Automatic Powder Dosing System

Availability:
Quantity:

The automatic powder dosing system is suitable for various powder dosing processes, and can be divided into continuous or batch dosing processes. By adding dry powder through the screw propeller, solutions of different concentrations can be accurately obtained, which is suitable for the preparation of flocculant, activated carbon, potassium permanganate, and coagulant solutions. The structure can be designed as upper and lower two-boxes, three-boxes according to customer needs, and can be customized into rectangular or circular or other structural forms according to customer needs. The material can be made of 304, 316L  PP and other materials, and non-standard customization is acceptable.


Two-box series automatic powder preparation unit

The PL2 two-box series automatic powder preparation and dosing device adopts an upper and lower structure, the upper cavity is dissolved and matured, and the lower cavity is stored. The outlet of the powder spiral dosing device is a shutter design, and there is a heater outside the spiral tube.


OWN  the following advantages:

·Compact structure, small footprint

·The water pressure has no effect on the configuration concentration

·The solution concentration is more stable

·The best curing time is controllableRR

·Continuous batch operation, stable dosage


Specification&technical date

Model

Spec.

PL2-500

PL2-1000

PL2-2000

PL2-3000

PL2-4000

PL2-5000

Remark

Solution Production Capacity(L/h)

500

1000

2000

3000

4000

5000


External Dimensions(mm)

L

1500

1800

2250

2350

2500

2700

Please ask for the actual Dimension before ordering

W

1000

1200

1650

1750

1900

2100

H


1860


2260


2310


2960


3310


3360

Metering Feeder Power(KW)

0.18

0.18

0.18

0.18

0.18

0.18


Chemical Solution Agitator(KW)

0.75

1.1

1.5

2.2

3

3


Reference Weight(kg)

300

370

640

800

940

1350



Three-box type automatic powder preparation unit

The PL3 automatic three-box powder preparation system is divided into a dissolving tank, a curing tank and a storage tank. It can be controlled manually or automatically. The system is compact in structure, can be operated automatically, and the preparation concentration is adjustable.


Applicable agent type

·Poly Aluminum Chloride (PAC)

·Polyacrylamide (PAM)

·Aluminum sulfate

·Activated Carbon

117

Specification&technical date

Model

Spec.

PL3-500

PL3-1000

PL3-1500 PL3-2000

PL3-3000

PL3-4000

PL3-5000

PL3-6000 PL3-7000 PL3-8000
PL3-9000

Remark

Solution Production Capacity(L/h)

500

1000

1500

2000

3000

4000

5000

6000 7000 8000 9000
External Dimensions(mm)

L

1690

1840

2040

2140

2440

2900

3240

3950 4550 4550 4550

Please ask for the actual Dimension before ordering

W

950

1250

1270

1270

1450

1560

1760

1760 1760 1760 1760

H

1600

1700

1800

2010

2100

2120

2120

2120 2120 2250 2400

Metering Feeder Power(KW)

0.18

0.18

0.18

0.18

0.18

0.18

0.18

0.18 0.18 0.18 0.18

Chemical Solution Agitator(KW)

0.37X2

0.37X3

0.37X3

0.37X3

0.55X3

0.55X3

0.75X3

0.75X3
1.1X3 1.5X3 1.5X3

Reference Weight(kg)

310

450

470

520

740

890

970

1110 1200 1280 1340

Powder storage device

The powder silo is columnar with a cone-shaped fully enclosed structure at the bottom. The upper part is equipped with a dust filter and an overpressure/negative pressure safety valve. The bottom of the silo is equipped with a vibration activation device to ensure that there is no "cavitation" phenomenon during the unloading process. The silo body is equipped with a level gauge to display and monitor the accumulation of powder height. The system is equipped with a dedicated feeder and an online weighing device to accurately control the amount of material added. The system is equipped with local PLC control boxes and other accessories necessary for safe, reliable and effective operation.


Applicable storage agent type

·lime powder

·Activated Carbon

·Fly Ash

119


Lime (activated carbon) solution preparation system

Lime (activated carbon) can be dry-dosed, but the dosing system is complicated when dosing at long distances and at multiple points, and the dosing amount is difficult to control. The uneven distribution of the agent in the medium will increase the usage of the agent. Wet dosing The addition method is easier to realize automatic quantitative dosing, with a high degree of automation, and saves the cost of medicine.


System advantages

·System sealing design-effectively control dust

·Cavity shock design-efficient and safe arch breaking

·Online weighing and feeding-stable dosing concentration

·On-line display of material level-real-time control of remaining material

·Imported brand accessories-quality assurance

·Carbon steel or 304SS material-longer service life

·PLC control-high degree of automation
