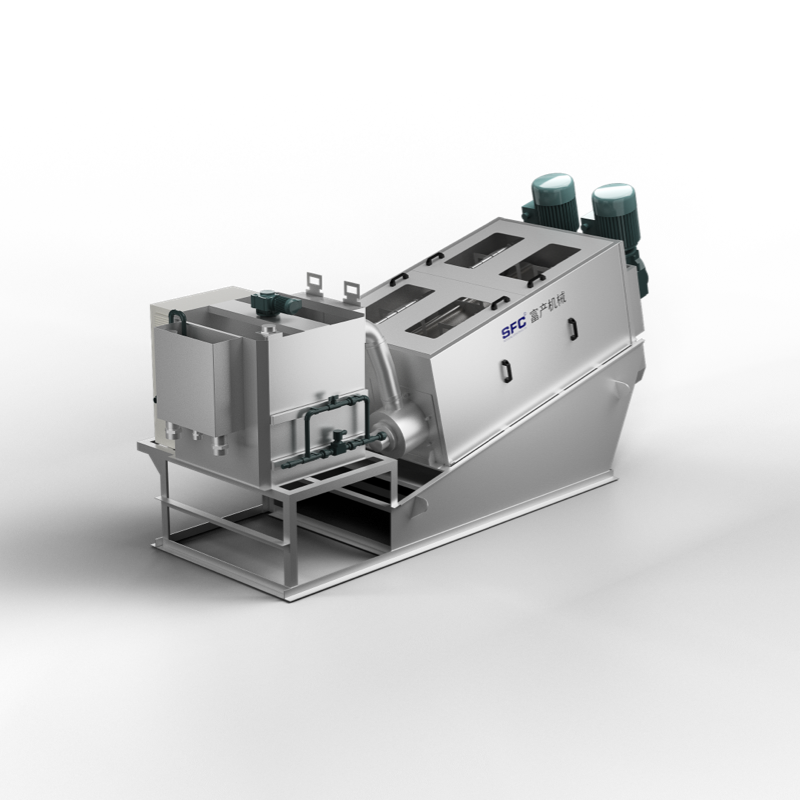

DL Series Screw Sludge Dewatering Machine

Availability:
Quantity:


Construction principle

Sludge Dewatering machine consists of multiple ring, active ring and volute filter, which is able to complete the sludge thickening and press dewatering. In concentration part, filtrate quickly discharge and never block through the relative movement between fixed and moved, In the dewatering part, the conveyor make volume shrunk, enhance internal  pressure by pressure plate, novel model replace the traditional model.The advanced solid-liquid separation and self-cleaning technology will bring new times.


Sludge dewatering principle

The interval in the thickening part of sludge dehydrator is 0.5mm, and the dewatering part is 0.3mm and 0.15mm, the screw pitch from the thickening part to dewatering part turns to narrow through the rotating of screw edge to push up the floating plates which make the space narrow while it goes to outlet. So, the sludge dewatering unit generate pressure and high pressure by pressure plate, Discharge the sludge cakes.



Specification&technical date

Model

Spec.

DL-101

DL-102

DL-201

DL-202

DL-301

DL-302

DL-303

DL-351

DL-352

DL-353

DL-354

DL-401

DL-402

DL-403

DL-404

Inlet Consistency(S.S.0.6~5.0%)

0.1~1

0.2~2

0.75~1.8

1.5~3.6

0.6~10

1.2~20

3.6~30

2~12

2.4~24

3.6~36

4.8~48

3~25

6~50

9~75

18~100

Dried Sludge(kg/h)

3~5.0

5.0~10

9.0~15

18~30

30~50

60~100

90~150

60~100

120~200

180~300

180~300

90~150

180~300

270~450

360~600

Water Conten's Rate(%)

75~85

75~85

75~85

75~85

75~85

75~85

75~85

75~85

75~85

75~85

75~85

75~85

75~85

75~85

75~85

Screw Specifications

Diameter(mm)×Quantity(Root)


85×1


85×2


170×1


170×2


230×1


230×2


230×3


330×1


330×2


330×3


330×4


400×1


400×2


400×3


400×4

Power Consumption (KW)


0.12


0.12*2


0.25


0.25*2


0.55


0.55*2


0.55*3


0.75


0.75*2


0.75*3


0.75*4


1.5


1.5*2


1.5*3


1.5*4

Power Consumption (KW)


0.18


0.18


0.37


0.37


0.37


0.37


0.55


0.37


0.55


0.37*2


0.55*2


0.55


0.75


0.55*2


0.75*2


External Dimensions (mm)


L


1950


1950


2700


2870


3340


3540


3540


3255


3455


4270


4270


4500


4910


5040


5040


W


750


1000


830


1160


1000


1400


1770


1220


1460


2050


2640


1120


1560


2330


2930


H


1130


1130


1550


1550


1780


1780


1780


2250


2250


2250


2250


2130


2130


2130


2130

Reference Weight(kg)


190


240


360


490


540


830


1220


650


1000


1470


2100


1330


2070


2780


3630
