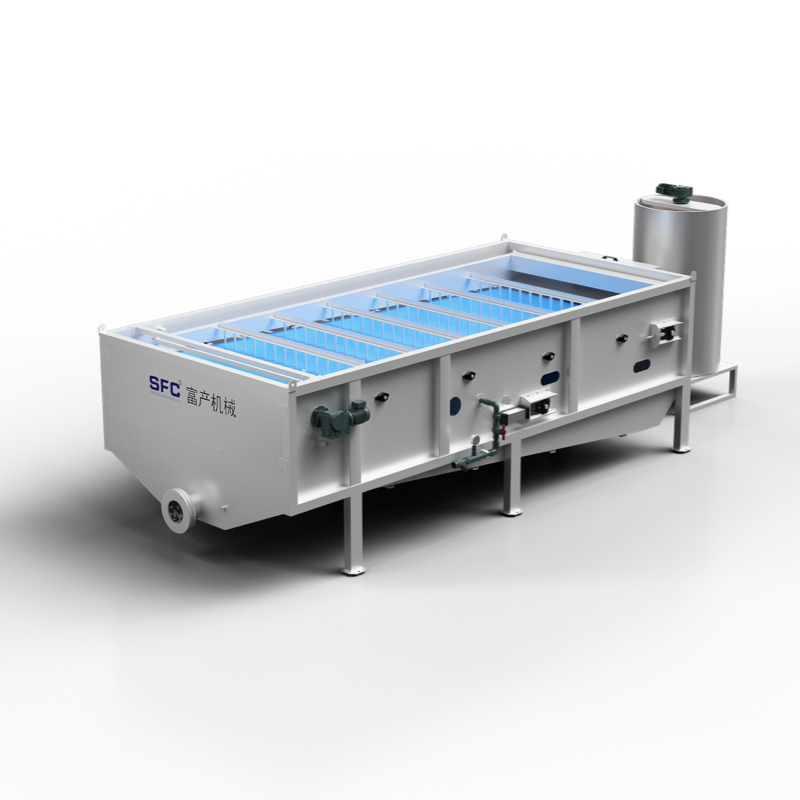

FBT Series Belt Sludge Thickener

Availability:
Quantity:


Working Principle

FBT series belt thickener is designed for sludge thickening and dewater of solid content  0.4-1.5%, the final dried sludge content could be 5-7% for normal non-processing sludge from municipal biochemistry.the dried sludge content 10-12% for certain sludge when it is equipped with hydrophobic plough, pressure plate or pressure axis. the belt operating speed can be adjusted between 3-18 meters/min.


Characteristic of belt sludge thickener

1.Solid-capture rate 98%

2.High-performance, durable and no maintance basicly

3.Low energy consumption and low rotating speed

4.Low polymer consumption

5.Entirety body is made of stainless steel and polymer structure


Specification&technical date

Model
Spec.

FBT-1000

FBT-1500

FBT-2000

FBT-2500

FBT-3000

Remark

Belt Width(mm)

1000

1500

2000

2500

3000


Treating Capacity(m³/h)
Inlet Consistency(S.S.0.6~1.5%)

12~20

25~35

35~50

45~65

65~95

Depends on the slurry feature

Dried Sludge(kg/h)

72~180

150~375

210~525

270~675

360~900

Depends on the slurry feature

Sludge Outlet Consistency(%)

2.5~8

2.5~8

2.5~8

2.5~8

2.5~8

Depends on the slurry feature

Power Consumption (KW)

0.55

0.75

1.1

1.5

1.5


External  Dimensions(mm)

L

5420

5620

5670

5670

6350

Please ask for the actual Dimension  before ordering

W

1670

2170

2600

3100

3600

H

1360

1360

1360

1360

1360

Reference  Weight(kg)

1100

1320

1750

1950

2460
