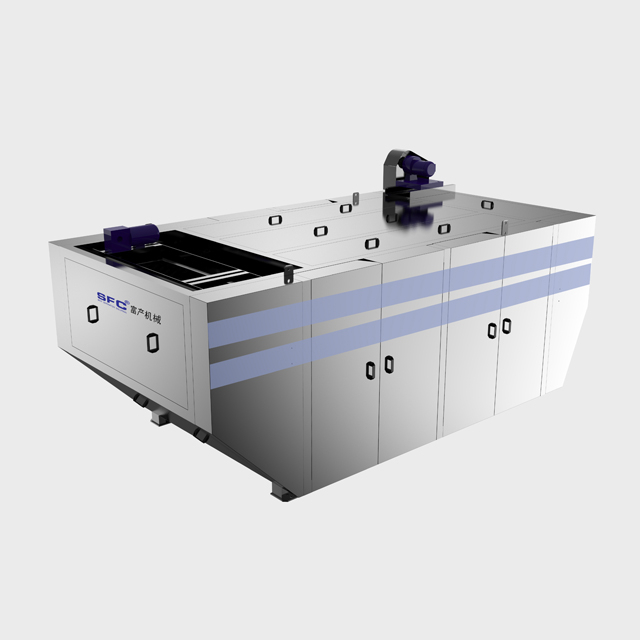

Horizontal Sludge Deep Dewatering System

Working Principle

SFC-SD high pressure belt type sludge deep dewatering system can run continuously for the second deep dewatering of sludge. Sludge after one dewatering(moisture content of about 80%) into the sludge high

efficiency mixer, and the modifier, curingagent for full mixing, so that the sludge to achieve wall breaking,

The ELECTRIC neutrALIZATION CAN CHANGE THE CHARACTERISTICS OF SLUDGE, reduce the specific resistance

of sludge dewatering, and the mixed sludge will enter the sewage of high-pressure belt type sludge deep dewatering machine.The sludge distribution system, above the sludge uniform distribution and filter cloth, the

 sludge passes through the prepressure section, medium pressure area, high pressure area and auxiliary press

roller of the high-pressure belt machine,after a series of crushing and dewatering, the moisture content of sludge

is reduced to 60% (it can be below 70% according to the project requirements) for subsequent sludge desiccation

or incineration provides convenience.

Technical character

1. It can directly connect with the original sludge dewatering system.The whole sludge does not land.

2. Continuous operation, high degree of automation, simple operation,convenient maintenance.

3. Small footprint, flexible and convenient layout.

4. Low operation cost and low maintenance cost.

5. The dehydrated sludge has good stability and will not be diluted again after meeting water.

6. Stable heavy metals and less bacteria.

Specification＆technical date

Remark:The specific size is subject to the drawing.Our companywill reserve the modifying right of the abovespecifications.
